Provide FCR, aFRR or mFRR
The ancillary services FCR-N, FCR-D, aFRR and mFRR are regulated in the balance responsibility agreement. You must therefore cooperate with a balance responsible party (BRP) in order to provide ancillary services.
The resource owner or technical subcontractor may establish contact with Svenska kraftnät and proceed in several steps of the process but must ultimately cooperate with a BRP to finalize the application process.
The BRP is our legal counterpart through the balance responsibility agreement and has therefore the final responsibility for the delivery of ancillary services.

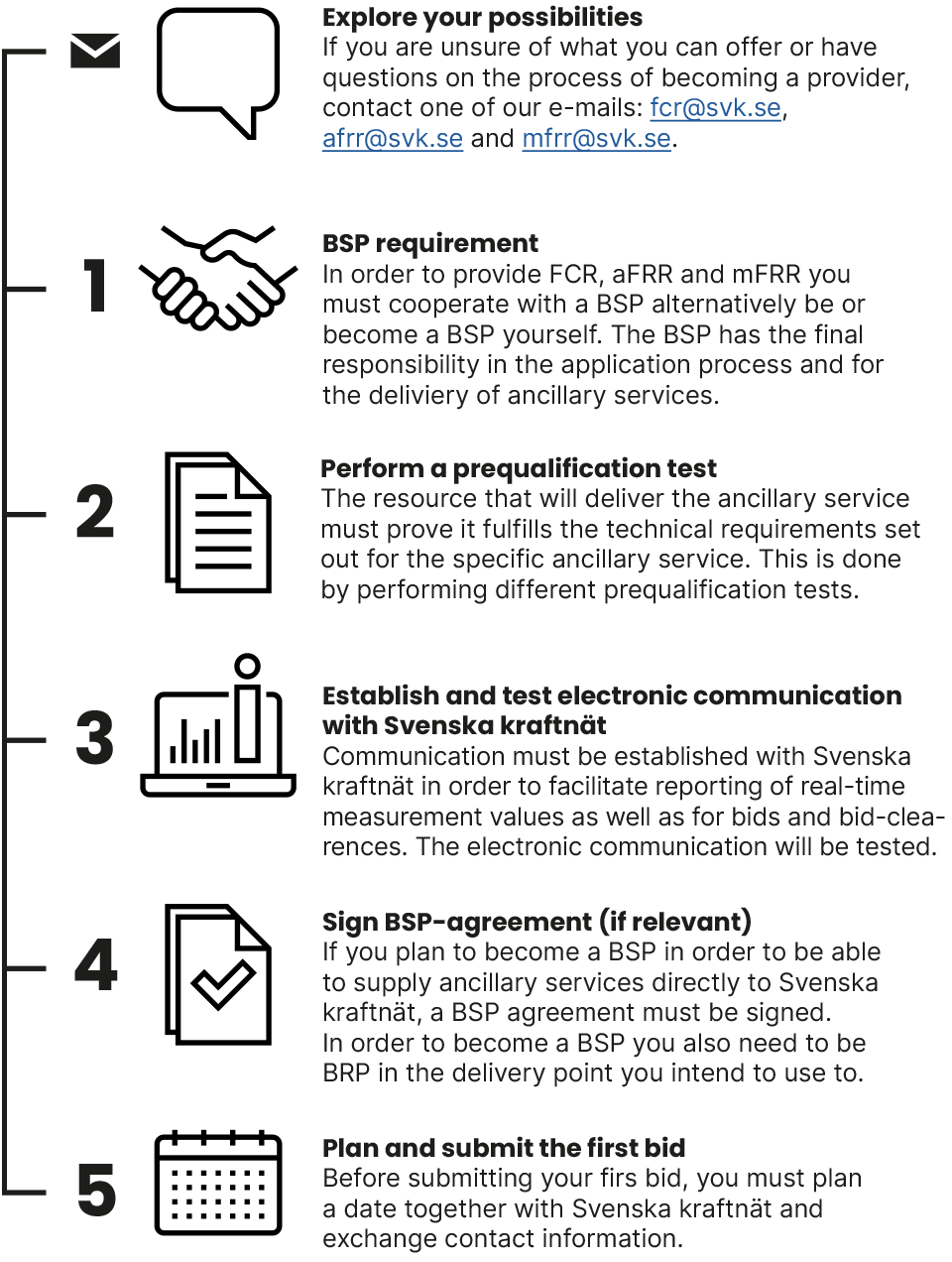

Firstly: explore your possibilities
Step 1: Requirements on balance responsibility
The requirement on balance responsibility can be fulfilled by either:
- Cooperating with an approved BRP
- Or becoming a BRP yourself
The responsibilities of a BRP is formalized in the balance responsibility agreement and the associated appendices.
A list of BRPs that are approved on our markets for ancillary services: Providers of ancillary services (in Swedish). (.pdf) Opens in a new window
Step 2: Prequalification
In order to participate on our markets for ancillary services, the provider shall demonstrate that the technical requirements for the ancillary service are met. The process is called prequalification.
The resource owner or the technical subcontractor may participate in many of the steps during the prequalification. They can also ask if their BRP wishes to participate during the process. It is the BRP that will receive a decision on the prequalification from Svenska kraftnät. The BRP must therefore be informed and approve that the prequalification can be initiated.
Submit a prequalification application
The prequalification application must contain
- Application form for each respective unit/group and reserve category (FCR, aFRR, mFRR & FFR).
- Test report where the results of the prequalification tests are summarized for each respective reserve and unit/group (test report templates found on this page).
- Logged data from the prequalification tests.
- Additional attachments in the appendix.
All documentation connected to the application shall be sent through a secure digital service. Notify Svenska kraftnät when you have completed all documents in your application and you will receive information on how to submit them.
Step 3: Establish and test electronic communication with Svenska kraftnät
The BRP must be able to communicate with Svenska kraftnät through the communication protocol that is assigned to the specific ancillary service. The BRP
- submits bid to and receives clearing from Svenska kraftnät
- receives bid from and forwards clearing to its technical subcontractor (if applicable)
As of today, there are two protocols for communication that are relevant: SMTP and ECP/EDX.
The provider has the responsibility for the set-up of ECP/EDX as well as the integration with your business system. Information on how to get started with ECP is available on our webpage Get started with ECP (only in Swedish).
As of today, there are two web interfaces that are relevant: FiftyWeb and Fifty Nordic MMS.
Bidding and bid clearance for FCR, aFRR and mFRR
- Bids are submitted in EDIFACT-format through SMTP and/or manual operation through FiftyWeb
- Bid clearance is notified in EDIFACT-format through SMTP and is also shown in FiftyWeb
- Plans and re-purchases are sent in EDIFACT-format through SMTP and/or manual operation through FiftyWeb
- Bids are submitted in accordance with CIM through ECP and/or manual operation through Fifty Nordic MMS web interface
- Bid clearance is notified in accordance with CIM through ECP and/or manual operation through Fifty Nordic MMS web interface
- Plans and re-purchases are sent in EDIFACT-format through SMTP
- Bids are submitted in accordance with CIM through ECP and/or manual operation through FiftyWeb
- Bid clearance is notified in accordance with CIM through ECP
Requirements on real-time measurements and communication
Real-time measurement data is used to monitor, plan and analyse the power system’s condition as part of ensuring a secure operation of the power system. The BRP, which is responsible for the provision of the ancillary service, must therefore be able to provide measurement data to Svenska kraftnät in real-time in accordance with requirements for the specific ancillary service.
Real-time measurement data may be sent directly from a technical subcontractor, however, it is still the BRP that has the responsibility of the data being delivered.
Specific requirements for each ancillary service is formalized in the balance responsibility agreement and the associated appendices. The balance responsibility agreement and its appendices are available in Swedish on our webpage.
If the BRP has a subcontractor, the data exchange between the BRP and the technical subcontractor can be delivered through a method of your own choice.
Real-time measurement data is primarily sent to Svenska kraftnät with the protocols ICCP or ELCOM through Svenska kraftnät’s fixed or leased fiber network. New participants without an existing connection to Svenska kraftnät may under certain circumstances be exempted from the requirement of real-time measurement data.
The exemption can be applied to during the prequalification step by stating that there is no existing connection to Svenska kraftnät. It is not possible to apply for an exemption from delivering real-time measurement data for aFRR since it is activated by a signal that is sent in real-time.
Svenska kraftnät is planning to implement an alternative wireless solution in 2023 which will facilitate delivery of measurement value data through the mobile network. The solution will be a more cost-effective alternative for new providers.
Testing the process of bidding and clearing of bids
The BRP may plan a last test together with Svenska kraftnät when all previous steps have been completed. The whole chain of communication will then be tested and will include submitting a bid and receiving activation or clearing of the bid.
When all the previous steps have been completed, a last test must be performed where the whole chain of communication is being tested. The BRP can plan for this test together with Svenska kraftnät. The test will include submitting a bid and receiving activation or clearance of the bid to test the whole chain of communication.
When the test is completed and everything is in order, the BRP may communicate to the resource owner or technical subcontractor that the resource is available for its first bid on the market. Svenska kraftnät will together with the BRP plan a date and time for the submission of the first bid.
Step 4: Planning and submitting the first bid
Before you are ready to participate on the market, the planning of the first bid must be completed together with Svenska kraftnät. This includes confirming a starting date as well as exchanging contact information through on of our e-mails: email@example.com, firstname.lastname@example.org och email@example.com.
The BRP shall not submit the first bid before Svenska kraftnät has approved it. After completing the first bid, you are free to continue your bidding independently.
It is the BRP that bids on the market and receives remuneration from Svenska kraftnät for cleared bids.
